Scaling is the fundamental precondition for deploying modern web applications for a global audience. It enables to have fault tolerance, more request handling, and better response time with parallel computation.

To understand scaling and deployment of a service in Kubernetes cluster:

We will create a sample Spring Boot service
Create its image and push it to the Docker repository
Deploy it over Kubernetes cluster to run it in a Pod
To scale it to multiple instances, we will create ReplicaSet
To manage rollout to different versions of the same service, we will create a Deployment
If our latest version of services has critical bugs, we will roll back our deployment

Create an Image

Let’s create a sample Spring Boot application.

plaintext
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
@SpringBootApplication
@RestController
public class SpringServiceApplication {
    public static void main(String\[\] args) {
        SpringApplication.run(SpringServiceApplication.class, args);
    }
    @GetMapping("/greet")
    public String sayHi() {
        return "Hello from v1";
    }
}

Create the Dockerfile for image creation.

plaintext
1
2
3
4
FROM openjdk:8-jdk-alpine
ARG JAR\_FILE=target/\*.jar
COPY ${JAR\_FILE} app.jar
ENTRYPOINT \["java","-jar","/app.jar"\]

Create a docker image using:
$ sudo docker build -t omkarshetkar/spring-service:v1 .

Push the image to remote docker repository:
$ sudo docker push omkarshetkar/spring-service:v1

Deploy Image in Kubernetes Cluster with Pod

Now, to have this image deployed in the Kubernetes cluster, we need to create a Pod.

A Pod is the smallest deployable resource in the Kubernetes cluster. It represents a collection of containers and storage volumes that share the same execution environment.

There are two ways to create a resource in Kubernetes.

Imperative
It is used for quick tests, debugging, or applying hotfixes in the cluster.

Declarative
The preferred and recommended approach to create resources for production. Here, manifest files are created having configuration details of the specific resource.

To create a Pod with imperative command
kubectl run spring-service --image=omkarshetkar/spring-service:v1

To create with declarative configuration, create the following pod.yaml:

plaintext
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
apiVersion: v1
kind: Pod
metadata:
  labels:
    app: spring-service-v1
  name: spring-service
  namespace: default
spec:
  containers:
    - image: omkarshetkar/spring-service:v1
      name: spring-service
      ports:
        - containerPort: 8080
          name: http
          protocol: TCP

kind <– Specifies the type of resource
metadata.labels <– Label to identify Pod

A label is a key/value pair.
Every resource in Kubernetes can have one or more labels.
Labels help in grouping the resources in various combinations irrespective of their specific kind.

Create the Pod by applying the configuration:
$ kubectl apply -f k8s/pod.yaml
pod/spring-service created

List the pods:

``` $ kubectl get pods

NAME READY STATUS RESTARTS AGE
spring-service 1/1 Running 0 78s

plaintext
1
2
3
4
5

To access the service in Pod, export the port to host:
 `$ kubectl port-forward pod/spring-service 8080:8080`

Access the `/greet` API of the deployed service:

$ curl http://localhost:8080/greet
Hello from v1

plaintext
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

![](/images/caa521c0-0780-4597-b8a0-3841282d17e9.jpeg)

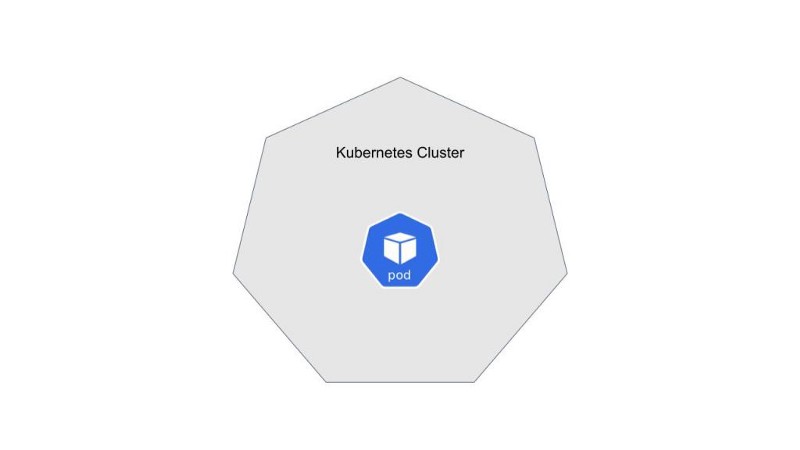

As you can see in the listing of Pods, we have only one Pod for the service. Suddenly, our application has become famous and seen a surge in usage. Hence we want to scale the service. Then, we need to scale up the number of Pods.

### Scaling the Service with ReplicaSet

To scale the service, we create a corresponding ReplicaSet object.

> *ReplicaSet is a cluster-wide Pod manager, to ensure a given number of specific Pods are running all the time.*

ReplicaSet specification for our service will look as following `replicaset.yaml` :

apiVersion: apps/v1
kind: ReplicaSet
metadata:
name: spring-service-rs
labels:
app: spring-service-rs
spec:

modify replicas according to your case

replicas: 3
selector:
matchLabels:
app: spring-service-v1
template:
metadata:
labels:
app: spring-service-v1
spec:
containers:
- name: spring-service-container
image: omkarshetkar/spring-service:v1
ports:
- containerPort: 8080

plaintext
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

`metadata.name` <-- Name of the ReplicaSet
`spec.replicas` <-- Desired number of Pods. Here, its 3.
`spec.template` <-- Corresponding Pod template

**How ReplicaSet linked with Pod?**

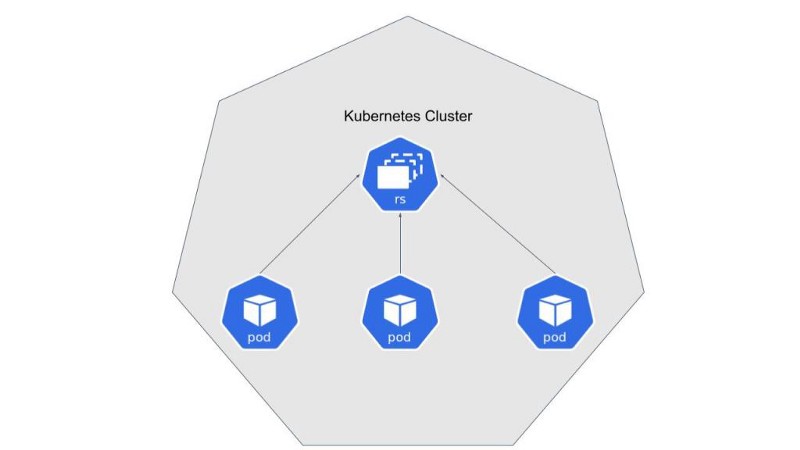

As you can see in replicaset.yaml, we are specifying the Pod template with the label as `app: spring-service`. The same label is specified for `matchLabels` of ReplicaSet. By this, we are instructing to Kubernetes API server (Engine to execute all kubectl requests) to create ReplicaSet for Pods which match labels under matchLabels.

To create a ReplicaSet:
 ```
$ kubectl apply -f k8s/replicaset.yaml
replicaset.apps/spring-service-rs created

Inspect ReplicaSets:

plaintext
1
2
3
4
$ kubectl get rs

NAME DESIRED CURRENT READY AGE
spring-service-rs 3 3 3 4s

ReplicaSet is showing as 3 Pods are in the ready state.

Let’s list the Pods, and see their status:

plaintext
1
2
3
4
5
6
7
$ kubectl get pods -l app=spring-service-v1

NAME READY STATUS RESTARTS AGE
spring-service 1/1 Running 0 37m
spring-service-rs-ksxzp 1/1 Running 0 8s
spring-service-rs-fwrnd 1/1 Running 0 8s
spring-service-rs-m8z8d 1/1 Running 0 8s

As expected, 3 instances of Pods are running.

How do I scale up/down the ReplicaSet?

To scale up to 4 pods, we can achieve it in either imperative or declarative way.

Imperatively:

plaintext
1
2
3
4
5
6
$ kubectl scale rs spring-service-rs --replicas=4
replicaset.apps/spring-service-rs scaled
$ kubectl get rs

NAME DESIRED CURRENT READY AGE
spring-service-rs 4 4 4 12m

Declaratively, will modify replicaset.yaml (preferred approach):

plaintext
1
2
3
spec:
  # modify replicas according to your case
  replicas: 4

To delete a ReplicaSet:

plaintext
1
2
$ kubectl delete rs spring-service-rs
replicaset.apps "spring-service-rs" deleted

It will delete ReplicaSet along with associated Pods.

Rollout/Rollback with Deployment

What if I want to upgrade my service from v1 to v2 and deploy the same in the cluster?

ReplicaSets manage a single instance of service. To manage multiple instances and their rollouts, we need to have Deployment object.

Deployment enables rollout and rollback to different versions of service with less/no downtime.

Deployment configuration deployment.yaml will be as follows:

plaintext
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
apiVersion: apps/v1
kind: Deployment
metadata:
  name: spring-service-deployment
  labels:
    app: spring-service-deployment
spec:
  replicas: 3
  selector:
    matchLabels:
      app: spring-service
  template:
    metadata:
      labels:
        app: spring-service
    spec:
      containers:
        - name: spring-service-container
          image: omkarshetkar/spring-service:v1
          ports:
            - containerPort: 8080

As you might have noticed, the specification for ReplicaSet and Deployment is almost similar except for the kind attribute value.
ReplicaSet is for scaling of a single instance of service whereas Deployment is for managing the scaling of multiple versions of a particular service.

To create Deployment:

plaintext
1
2
$ kubectl apply -f k8s/deployment.yaml
deployment.apps/spring-service-deployment created

Let’s see how deployment is listed:

plaintext
1
2
3
4
$ kubectl get deployment

NAME READY UP-TO-DATE AVAILABLE AGE
spring-service-deployment 3/3 3 3 6m36s

As expected, 3 pods are created and available.

Also, notice every Deployment will have associated ReplicaSet created. It exists as long as the corresponding Deployment exists.

plaintext
1
2
3
4
$ kubectl get rs

NAME DESIRED CURRENT READY AGE
spring-service-deployment-7b8b6f5dcb 2 2 2 16m

Scaling commands for Deployment are similar to that for ReplicaSet.
Following imperative command will scale down to 2 instances.
$ kubectl scale deployments spring-service-deployment --replicas=2

The same can be achieved through a declarative change in the configuration file.

To see it working, let’s export the port for Deployment:

plaintext
1
2
3
4
5
6
$ kubectl port-forward deployment/spring-service-deployment 8080:8080

Forwarding from 127.0.0.1:8080 -> 8080
Forwarding from [::1]:8080 -> 8080
Handling connection for 8080
Handling connection for 8080

plaintext
1
2
$ curl localhost:8080/greet
Hello from v1

Upgrade service from version v1 to v2

Make a change in service:

plaintext
1
2
3
4
@GetMapping("/greet")
    public String sayHi() {
        return "Hello from v2";
    }

Create a new image for version v2 and push it to remote Docker repository:
$ sudo docker build -t omkarshetkar/spring-service:v2 .
$ sudo docker push omkarshetkar/spring-service:v2

Now, let’s refer new image in our deployment.yaml:

plaintext
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
apiVersion: apps/v1
kind: Deployment
metadata:
  name: spring-service-deployment
  labels:
    app: spring-service-deployment
spec:
  replicas: 3
  selector:
    matchLabels:
      app: spring-service-v2
  template:
    metadata:
      labels:
        app: spring-service-v2
    spec:
      containers:
        - name: spring-service-container
          image: omkarshetkar/spring-service:v2
          ports:
            - containerPort: 8080

Applying the changed configuration:

plaintext
1
2
  $ kubectl apply -f k8s/deployment.yaml
deployment.apps/spring-service-deployment configured

Let’s export the port for Deployment and see the API response:

plaintext
1
2
3
4
$ kubectl port-forward deployment/spring-service-deployment 8080:8080

Forwarding from 127.0.0.1:8080 -> 8080
Forwarding from [::1]:8080 -> 8080

plaintext
1
2
$ curl localhost:8080/greet
Hello from v2

As expected, we are seeing changes done for v2.

Note that for service upgrade, we needed to do a single version change in deployment.yaml and everything else is taken care of by Kubernetes.

Let’s make another change in service and upgrade to v3.

As expected, we can see the following API response:

plaintext
1
2
$ curl localhost:8080/greet
Hello from v3

Rollout history for a Deployment can be seen by:

plaintext
1
2
3
4
5
6
7
$ kubectl rollout history deployments spring-service-deployment

deployment.apps/spring-service-deployment
REVISION CHANGE-CAUSE
1
2
3

Kubernetes assigns a revision number for every new deployment. It helps in the rollback of deployment to a particular version.

Rollback

Let’s say something went wrong in v3 of service and want to rollback to the previous version. Is it possible?
Yes!

plaintext
1
2
$ kubectl rollout undo deployments spring-service-deployment
deployment.apps/spring-service-deployment rolled back

Now, if you see API response, it will be for v2:

plaintext
1
2
$ curl localhost:8080/greet
Hello from v2

Finally, we can delete the deployment with:

plaintext
1
2
$ kubectl delete deploy spring-service-deployment
deployment.apps "spring-service-deployment" deleted

Or declaratively:

$ kubectl delete -f k8s/deployment.yaml

Deletion of a deployment deletes associated ReplicaSet and Pods.

Thus, for scale and flexible deployments, we need to have Deployment resources. Effectively, we need to define only Deployment resources and Pod template, which will, in turn, define ReplicaSet and Pod.

Code for the above discussion is available here.

The way to roll out the changes with no/less downtime is a topic for a separate discussion.
